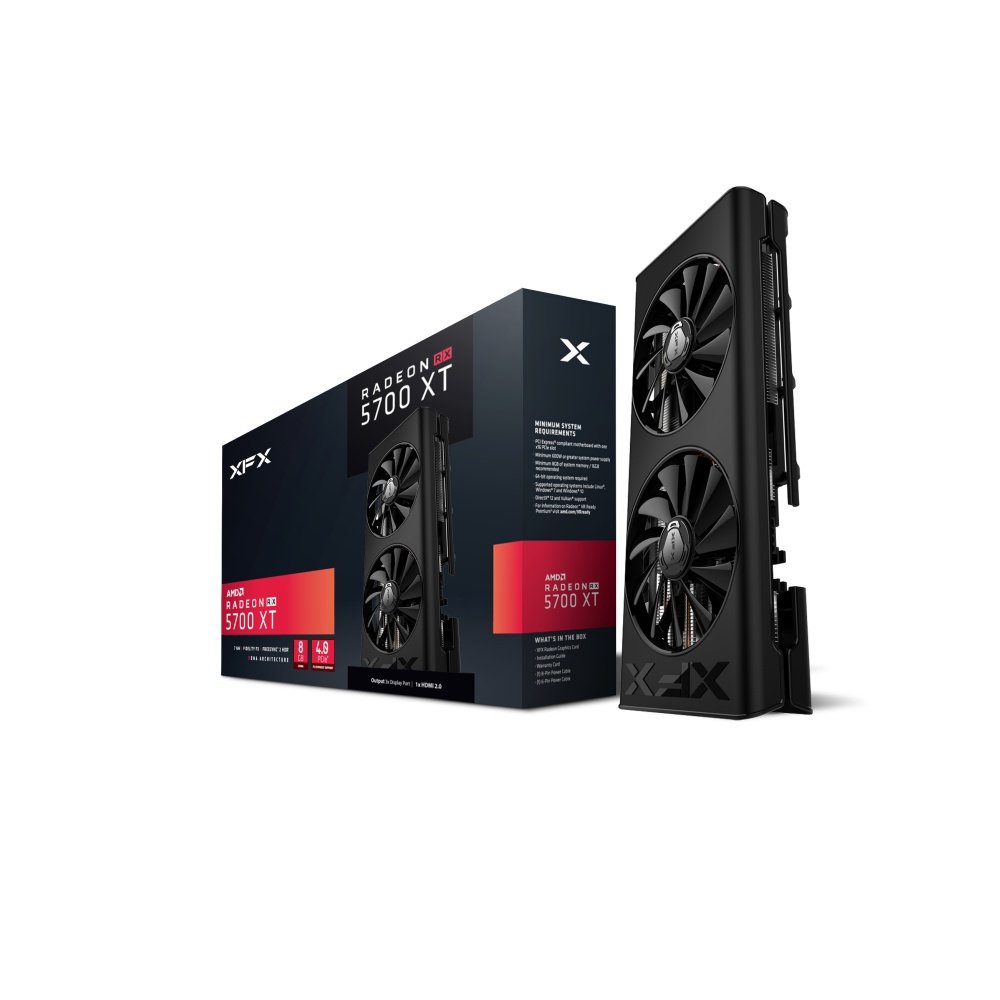

XFX AMD Radeon™ RX 5700 XT Double Dissipation 8GB GDDR6
$300.00
BEND THE RULES Great gaming experiences are created by bending the rules. The AMD Radeon™ RX 5700 Series GPUs are powered by the all new RDNA architecture and are designed from the ground up for exceptional 1440p performance, exceptional power-efficiency for high-fidelity gaming. Equipped with the latest 8GB of GDDR6 high-speed memory and PCI Express 4.0 support, delivering twice the bandwidth.

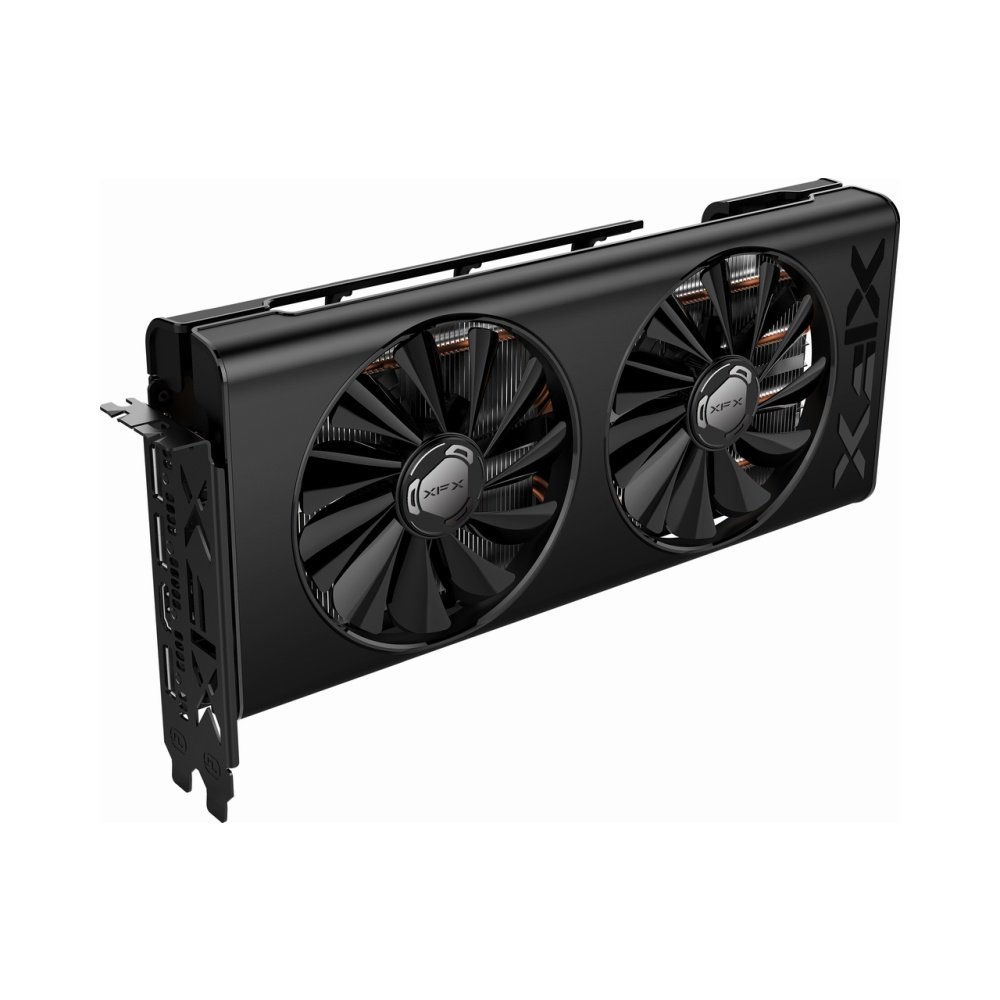

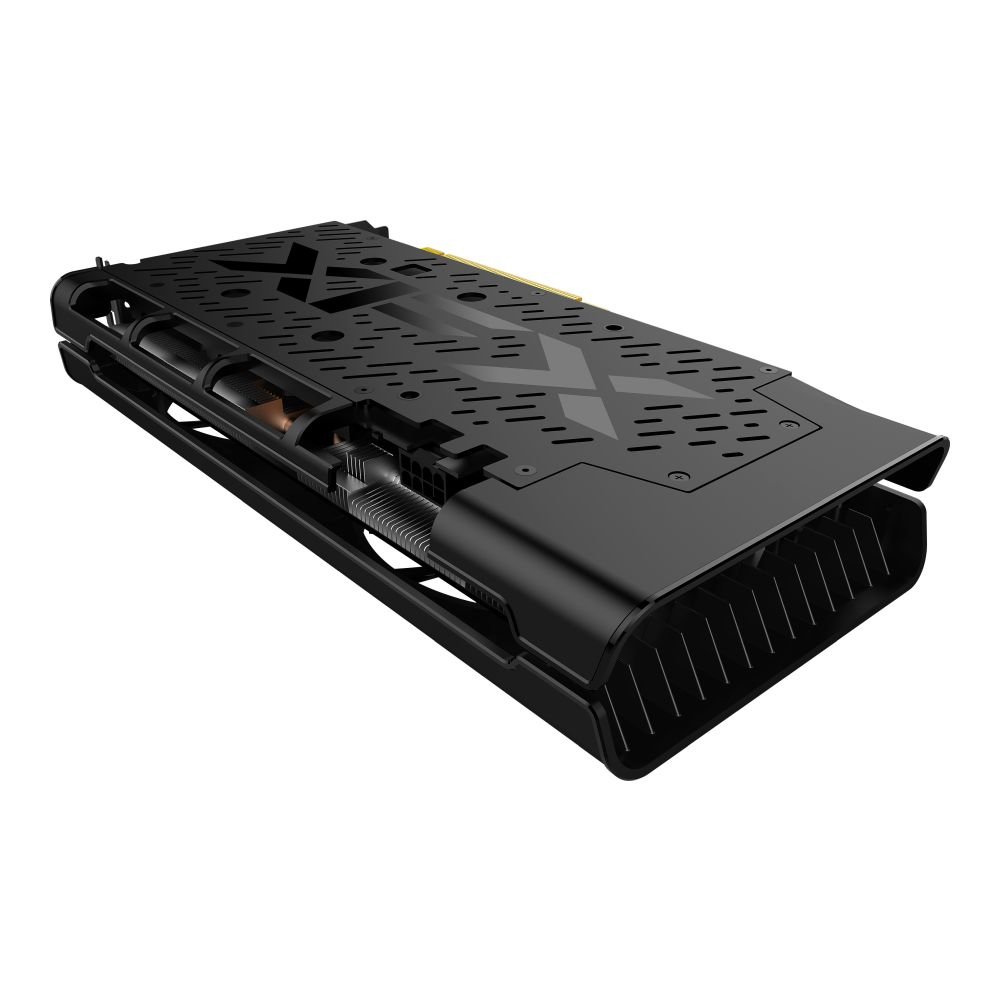

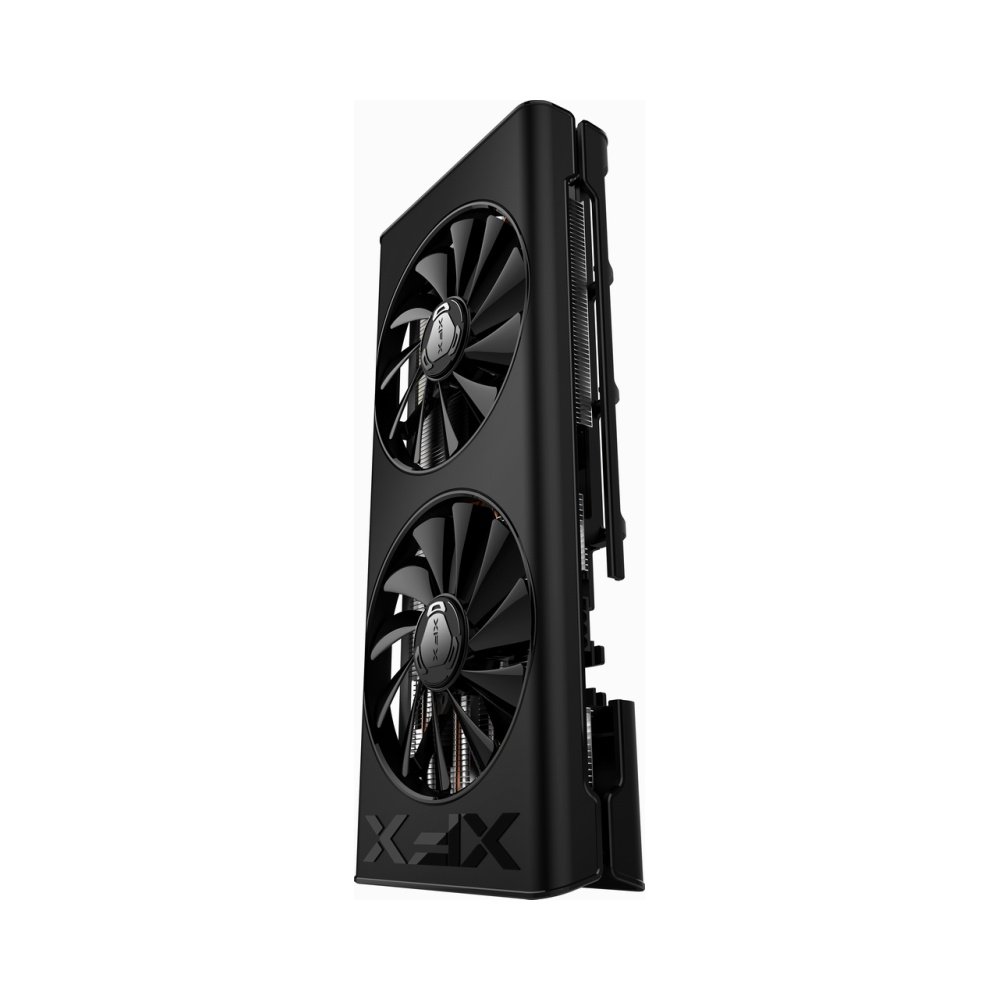

Introducing the XFX 5700 XT Double Dissipation. Built on the acclaimed Ghost Thermal 2.0 designs to yield lower temperatures and heightened performance that adapt to the intensity of the moment.
Get the very best FPS the 5700 Series can deliver. Thanks to the 2 100mm fans, the 5700 XT DD stays cool and quiet, allowing you to achieve higher boost clocks.
Equipped with dual BIOS. Choose between high performance mode or lower fan noise for your desired gaming experience.
Key Features
• RDNA architecture
• Advanced 7nm GPU
• PCI Express 4.0 Support
• Radeon Image Sharpening
• FidelityFX
• Radeon Anti-Lag
• Microsoft® Windows® 10 Support
• Microsoft® DirectX™ 12 Support
• 7nm Technology
• AMD Virtual Super Resolution (VSR)
• AMD Relive
• AMD FreeSync 2 HDR
• AMD Frame Rate Target Control (FRTC)
• AMD Eyefinity multi-display technology
• AMD Radeon Adrenalin Software 2019
• AMD WattMan
• HDMI 2.0b
• Displayport 1.4 w/ DSC
• Dolby TrueHD and DTS-HD Master Audio Support
• Up to 6 displays supported, (may require the use of MST Hubs)
• OpenGL 4.5 Support
• OpenCL Support
Manufacturer XFX
Model Number RX-57XT82LD6
Product Name AMD Radeon™ RX 5700 XT
Product Description XFX RX 5700 DD 8G D6 3xDP HDMI
Launch Date Apr,2020
UPC Number 778656079755
Specifications
Bus Type PCI-E 4.0
Base Clock 1605MHz
Game Clock 1755MHz
Boost Clock Up to 1905Hz
Stream Processors 2560
Memory Bus 256 bit
Memory Clock 14 Gbps
Memory Size 8 GB
Memory Type GDDR6
Card Profile Dual SLot
Thermal Solution DD Fansink
*”Game Clock” is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Outputs
Dual link Support Y
Max Supported Resolution (DIGITAL) up to 8K resolution at 60 Hz or 5K at 120 Hz
Output – Display Port 3
Output – HDMI 1
Features
Display Port ready DisplayPort 1.4 HDR
HDMI Ready 2.0b
Requirements
External Power – 8-pins 1
External Power – 6-pins 1
Minimum Power Supply Requirement 600 watt
XFX Recommended Power Supply XFX 600W PSU
Technologies
RDNA Architecture
2nd Gen 7nm GPU
GDDR6 Memory
Power Efficiency
PCI® Express4.0 Support
Video Streaming up to 8K
DisplayPort 1.4w/DSC
Radeon™ Image Sharpening
Async Compute
Radeon™ Rays Audio + True Audio Next
Radeon™ Freesync™ 2 HDR*
Radeon™ VR Ready Premuim
Radeon™ Software
Driver Optimizations
Radeon™ Boost
Certifications
RoHS
Package Contents
8-pin to 6-pin power cable 1
6-pin to 4-pin power cable 1
Driver Disk Installation Guide 1
Estimated Dimensions And Weights
Card Dimension (cm) 28 x 14.8 x 4.4
Card Dimension (inch) 11.02 x 5.83 x 1.73
Master Carton Dimensions (cm) 43 x 49 x 35.5
Master Carton Dimensions (inch) 16.93 x 19.29 x 13.98
Master Carton Weight (Kg) TBD
Master Carton Weight (lb) TBD
Package Dimensions (cm) 34 x 24 x 8
Package Dimensions (inch) 13.39 x 9.45 x 3.15
Package Weight (Kg) TBD
Package Weight (lb) TBD
Units/Carton 10
XFX Zero DB Auto Load Sensing Fans
Power when you need it and quiet when you don’t.
XFX fans are equipped to run at the highest possible performance, while our Zero DB Fan System will also keep your fans running at efficient RPM in order to minimize annoying fan noise by lowering RPM all the way down to Zero RPM. When the heat is on during intense gaming, our fans will speed up as needed.
Fidelity FX
FidelityFX is a collection of high-quality post-process effects that automatically collapse multiple effects into fewer shader passes to reduce overhead and free up your GPU for the visceral experience you demand
Ultra HD Support
The XFX RX 5700 is built for high-performance and high resolution gameplay. Experience smooth gameplay performance at 1440p and 4k.With support for 8k you are ready for Next-Gen displays. See everything in mind blowing detail without sacrificing performance.
Radeon Freesync
Radeon Freesync 1 and FreeSync 2 HDR2 take full advantage ofRadeon RX 5700 series, bringing gamers the best stutter and tear-free gamingexperience with higher refresh rates, lower latency, and 10-bit HDR, availableon over 700 monitors.
Gaming RDNA Architecture
RDNA architecture is engineered for the next generation ofhigh-performance gaming. It’s the DNA that powers your games, the DNA thatbrings your games to life, the DNA that keeps evolving, the DNA that bringsyour games to life.
Intuitive Gaming Features
AMD Radeon™ Software Adrenalin 2020 Edition gives you more control over your gaming experiences. The software’s intuitive interface enables players to stream, share and tweak graphics settings in real-time without missing a second of the action or compromising in-game performance.
- Seize your gaming victories with easy streaming capabilities of Radeon™ ReLive
- Work smarter and cooler with Radeon™ Chill — dynamically helping save power while gaming
- Tailor your gameplay with custom profiles and enhance your PC performance with Radeon™ Wattman
- Tailor preferences without having to leave your game with Radeon™ Overlay
- Get Day-0 driver support and more
AMD VR Ready Premium
For extraordinary virtual reality experiences.
Experience the new generation of compelling Virtual Reality content with the Radeon™ graphics card paired with the leading VR headsets. The Radeon™ card coupled with AMD LiquidVR™ technology delivers a virtually stutter-free, low latency experience, essential for remarkable Virtual Reality environments. Industry leading innovation and powerful performance enables the Radeon™ to deliver premium experiences on high-end VR games, entertainment, and applications.
AMD Eyefinity Technology
Multidisplay technology for gaming, productivity and entertainment.
Expand your territory and customize your field of vision. Connect up to six displays on a single GPU for dynamic, panoramic multi-screen gaming. You’ll get an expansive experience that’s truly out of sight. (additional displays may require the use of MST hub).
Latest Display Connections
Ready for the latest displays
Radeon™ GPUs with the Radeon architecture support HDMI® 2.0b and DisplayPort™ 1.4 w/ DSC for compatibility with a new generation of monitors that would make any gamer excited: • 1080p @ 240Hz
• 1440p @ 240Hz
• 4K @ 120Hz
• 1440p ultra-wide @ 190Hz
• 8k @ 60Hz
XFX 3 Year Warranty
Giving you the performance you have come to expect from XFX.
Even though we trust that our high quality products will continue working at peak performance well beyond your use of it, we want to put our word behind that promise. That is why we offer our 3 Year Warranty with this series of graphics cards. This means that your product is protected by a 3 year limited hardware warranty on manufacturing defects of anything on the card.
